Steadyrack Bike Rack Installation
Why Choose Steadyrack Bike Racks?
Steadyrack bike racks are designed for easy, no-lift bike storage. With a unique swivel design, you can store your bike vertically and simply pivot it to the side, freeing up valuable garage space. No heavy lifting is required, making it an ideal solution for all ages and fitness levels.
CHOOSING THE CORRECT TYPE OF STEADYRACK BIKE RACK FOR YOUR BIKE

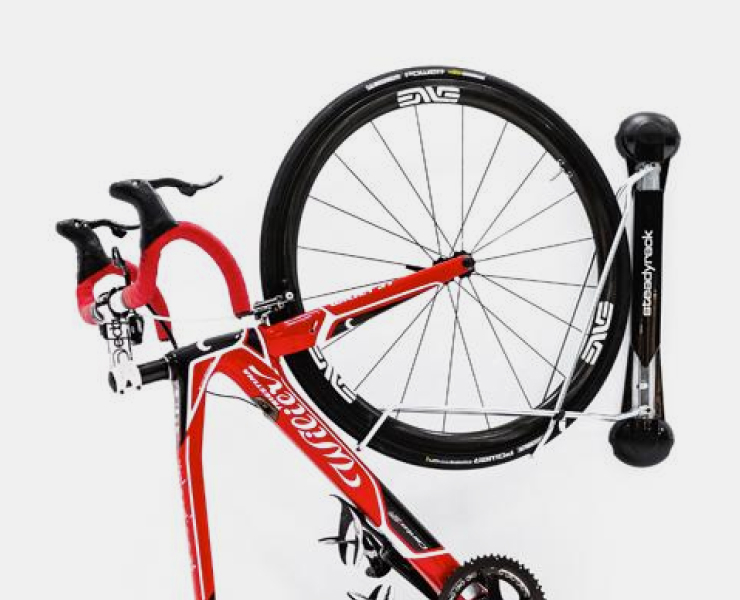

| Classic Rack |

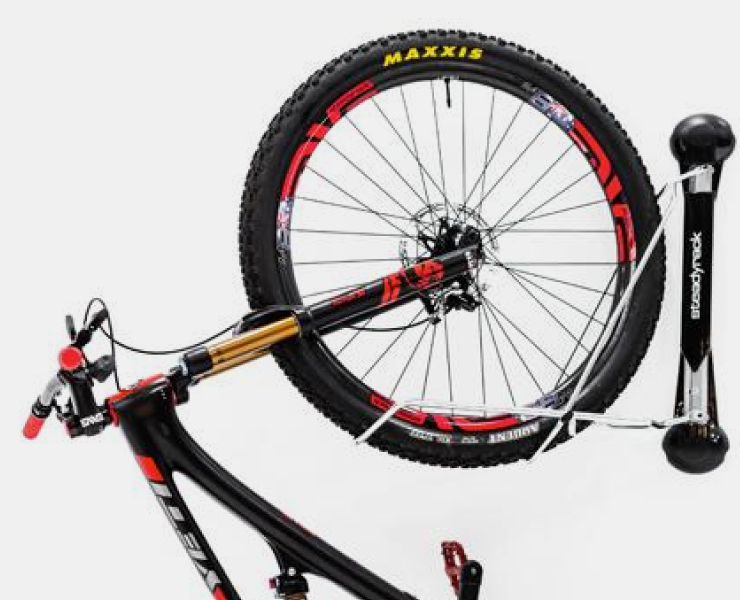

Mountain Bike Rack |

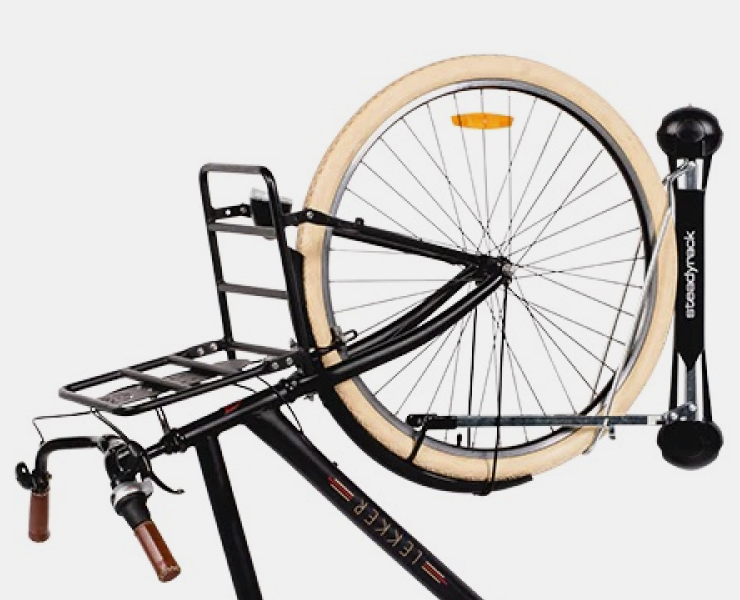

Fender Rack |

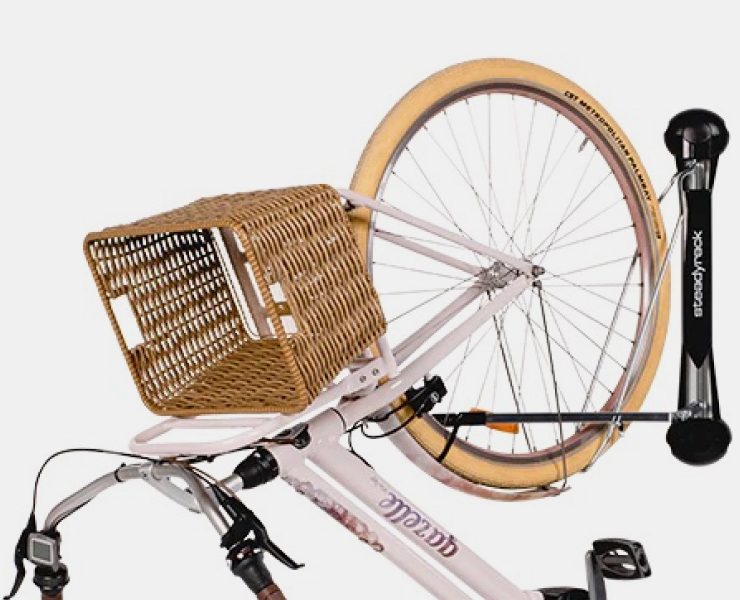

eBike Rack |

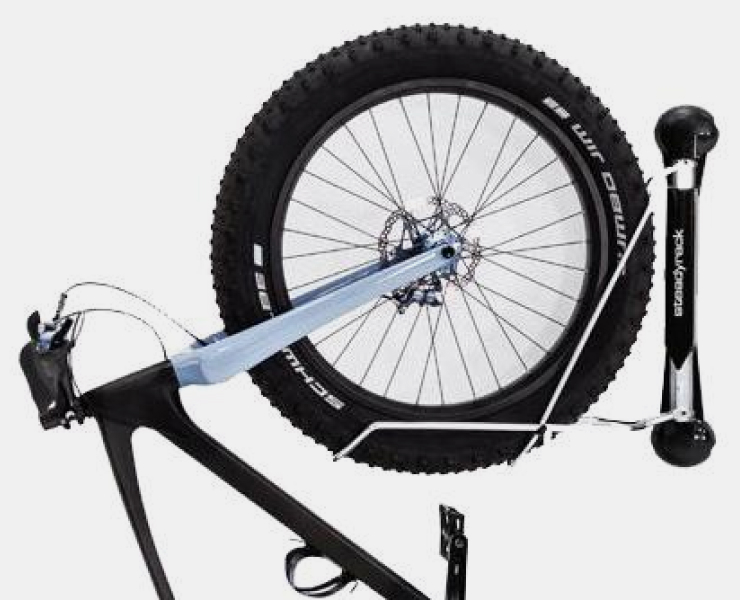

Fat Bike Rack |
|
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
|
| Bike Type | Road Bike Hybrid Bike Small Mountain Bike Bicycle Motocross Bike |
Mountain Bike eMountain Bike Gravel Bike |
Road Bike Time Trial Bike Hybrid Bike Small Mountain Bike Commuter Bike |
eBikes eMountain Bike Commuter Bike |
Fat Bikes eBikes with 'Fat' Tires |
| Wheel Diameter | 20” – 29” | 20'' – 29'' | 20” – 29” | 20" – 29" | 20” – 29” |
| Tire Width | Up to 2.1” | 2.1'' – 2.8" | Up to 2.4” | 2.1" – 2.8" | 2.1" – 2.8" |
| Maximum Weight | 35kg / 77lbs | 35kg / 77lbs | 25kg / 55lbs | 35kgs / 77lbs | 35kg / 77lbs |
| Fenders/Mudguards | No | No | Yes | Yes | No |
| Clearance Between Tire and Stays |
NA | NA | Minimum of 20mm or 3/4in |
Minimum of 20mm or 3/4in |
NA |
Benefits of Steadyrack Bike Racks:
Space
Saving
Store your bikes vertically to maximize floor space in your garage.
Easy
Access
The pivoting design allows for easy access to each bike, no matter how many you have.
No Lifting
Required
Simply roll your bike into place—no need to lift it onto hooks or shelves.
Durable and
Secure
Built with high-quality materials to securely hold a variety of bikes, including road, mountain, and e-bikes.
Protects
Your Bike
The soft, flexible arms on the rack hold your bike gently, protecting the wheels from damage.
CHOOSING THE CORRECT TYPE OF STEADYRACK BIKE RACK FOR YOUR BIKE

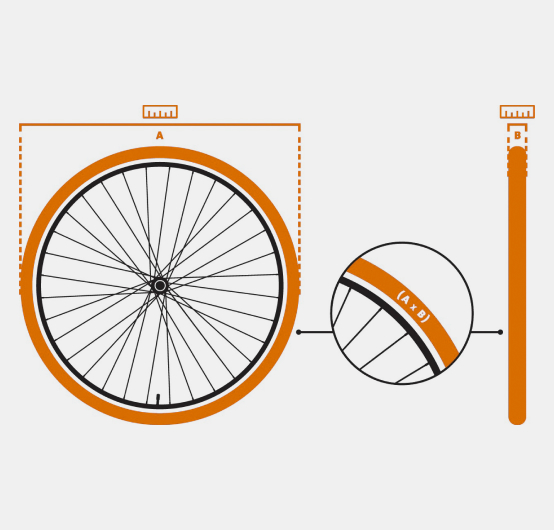

Step 1.
Tire and Wheel Size
It’s the combination of these two numbers that determine which type of bike rack to choose.
- Wheel size is the diameter of your wheel from edge to edge (A).
- Tire width is the width of the tire on the wheel (B).
Similar to car tires, all bike tires have markings on them.
- These will almost always give you the tire width and the wheel diameter you need to match them to the correct Steadyrack cycle rack.
- If you can't find the markings on your tire you can simply use a tape measure to get measurements A and B.
- Match your tire markings or measurements to our bike rack types above, under the 'bike specs' section. Combine this with the below steps to find the best Steadyrack to suit your bike.

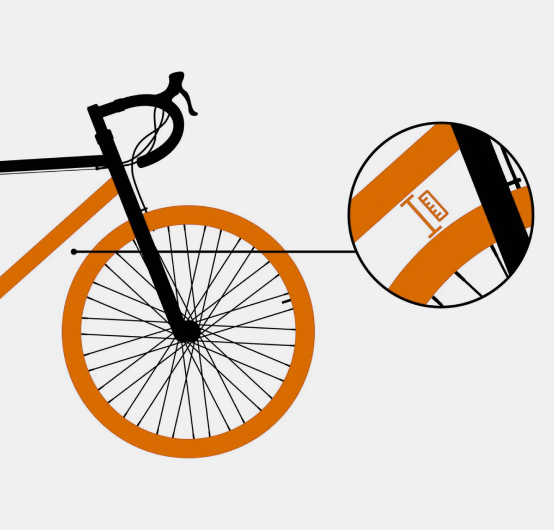

Step 2.
Narrow Space Between the Downtube and Wheel
For the most appropriate type of bike rack for bikes with tight tolerance between the downtube and tire, use our Steadyrack Fender Rack.
- These include bikes such as time trial bikes, aero bikes and some newer road bike designs such as Specalized S Works.
- If your bike has less than 15mm or 1/2” gap it may be better suited to our Fender Rack.

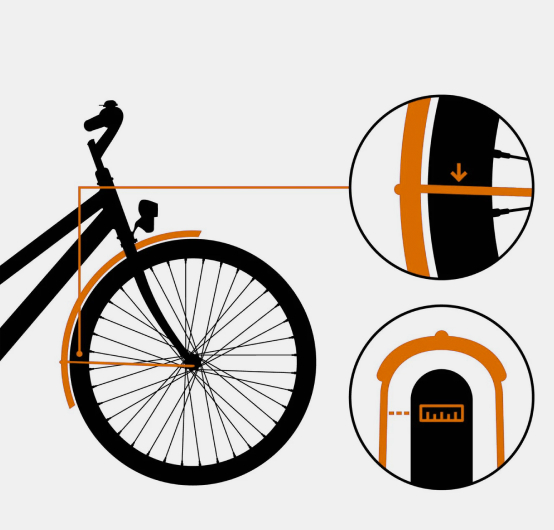

Step 3.
Does Your Bike Have Fixed Fenders or Mudguards Attached to the Front Forks?
The Steadyrack Fender Rack and eBike Rack are the only type of vertical bike racks that you can roll your bike in and out of, if it has permanent fixed fenders or mudguards.
- If your bike has fenders or mudguards, you will still need to match the tire and wheel size to our Fender Rack or eBike Rack specs to ensure it will fit (see step 1 above).
- You will also need to confirm the space between your fender stays and wheels is suitable (see step 4 below).
- Please note many mountain bikes with small fenders or mudguards will not require the Fender Rack or eBike Rack. Being much smaller they will not interfere with the function of our Classic Rack or Mountain Bike Rack.

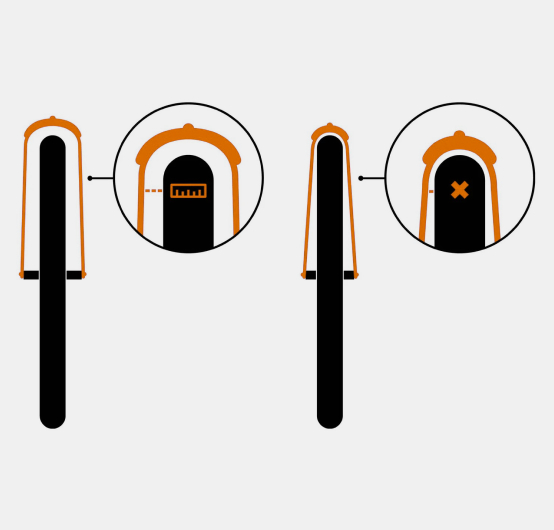

Step 4.
Fender 'Stay Arms' with Tight Tolerance
Also known as fender arms, U Stays, mudguard holder or fender brace, some bikes with fenders or mudguards which fit tightly to the wheel/tire will not fit our racks.
- The Steadyrack Fender Rack works by sliding between the fender/mudguard and tire when rolling the bike onto the rack. Before you purchase, take a moment to make sure your bike will fit safely and securely.
- If the stays on your bike are very close to the tire or rigid with no flexibility, there may not be room to fit the rack arms in between and you will not be able to mount the bike into this type of bike rack.
- We recommend a minimum 20mm or 3/4 inch clearance between the tire and stays to enable the bike rack to flex and fit between.
Why Choose Garagezilla for Your Steadyrack Installation?
At Garagezilla, we specialize in transforming your garage into a functional and organized space. With our Steadyrack bike rack installation service, you’ll have peace of mind knowing your bikes are securely stored, easily accessible, and out of the way. Our professional installers ensure that every rack is placed for optimal convenience and stability.
Expert Installation
We’ll handle the entire process from start to finish, ensuring your Steadyrack bike rack is installed correctly and efficiently.
Customized Solutions
Our team will assess your garage layout to find the perfect placement for your Steadyrack system.
Reliable Service
Garagezilla is known for top-quality service, providing solutions that last and improve your daily life.
Our Work
